What is MQTT and How to use it with OpenHab?

MQTT is the bread and butter of the Open Source IoT world and on this tutorial, you will learn everything you need to know about MQTT and how to integrate MQTT messaging in openHAB. MQTT and openHAB are a killing combination to start integrating  DIY Home Automation Sensors in your Smart Home Project.

Here is what you will learn today:

  1. What is MQTT?
    1. The architecture of the network.
    2. MQTT Topics.
  2.  openHAB MQTT
    1. Installing Mosquitto
    2. Configure the MQTT Binding in openHAB.
    3. Subscribe to an MQTT Topic from openHAB.
    4. Publish to an MQTT topic using openHAB.



What is MQTT?

MQTT is a protocol created by IBM that stands for Message Queue Telemetry Transport and it is primarily focused on M2M (Machine-to-Machine) communication.

You might be wondering what does this have to do with Home Automation…

Although MQTT has been used for a number of applications, it is heavily used as a communication protocol for IoT devices.

Why Is That?

  • MQTT was designed for applications where the required bandwidth is very low.
  • It consumes very little resources.
  • It is available on many different platforms.

Those reasons make MQTT the perfect protocol to run on microcontrollers that aren’t very powerful, like Arduino for example.



MQTT Architecture



MQTT uses a Star Topology with a central node called Broker and clients connected to it.

The Broker runs the party. It is in charge of sending and receiving the messages from the clients. Considering how lightweight the protocol is, it is worth mentioning that MQTT can work with encrypted messages, which is pretty impressive.

MQTT - Star Topology



How does this apply to Home Automation?

When you implement MQTT communication in your sensors, there will be primarily two elements:

  1. MQTT Broker: It allows the clients to publish or consume messages to/from topics.
  2. Sensors/Actuators: The clients can be sensors or actuators.
    1. Sensors: They publish messages on topics so the subscribers can read them. An example of this is a temperature sensor.
    2. Actuator: They are subscribed to a topic waiting for a command to execute an action, for example by turning on a light.

Clients can communicate between them but they still need the broker to distribute the message.



MQTT Topics

The communication in the MQTT protocol is based on topics. A sensor can publish messages on a topic and all the subscribers to that topic will receive that message.

Let’s walk through an example:



MQTT - Topics



Let’s say that we have a gas sensor in the kitchen that sends a radio signal when the gas levels go over a given threshold.  The sensor will publish a message on the topic Home/Floor1/Kitchen/Gas_Sensor with the number 1, indicating that a gas leak has been detected.

Every subscriber to the topic Home/Floor1/Kitchen/Gas_Sensor will get a copy of the message.

MQTT topics are built on a hierarchy, that means that if a subscriber is listening to Home/Floor1/Kitchen, it will get everything under the node kitchen.



MQTT And OpenHab

Installing Mosquitto in openHAB

As I explained before, a sensor on its own cannot do much, it is isolated. For the sensor to be able to publish messages there needs to be an MQTT broker. The broker is in charge of receiving and distributing messages from and to the other clients. In this post, I am going to explain to you how to install Mosquitto, an MQTT broker that is heavily used in IoT applications.

If you are using OpenHabian, installing Mosquitto is extremely easy. If you have not installed Openhab using OpenHabian it is never too late, Here you have a step by step tutorial.

1. SSH into your OpenHab Server, get into the OpenHabian Configuration and select Optional Components





2. In the Optional Components Menu select Mosquitto







3. Openhabian will ask you to confirm the installation



4. Provide a password for the MQTT Broker



5. Once Openhabian shows you the following message you can restart the Raspberry Pi for the changes to take effect.



OpenHab MQTT Binding

Now that you have an MQTT Broker installed on your server, it is time to connect your OpenHab server to the Broker.

1. Open PaperUI and go to Addons.

2. Select BINDINGS, look for MQTT Binding and install It.

There are compatibility issues on the lastest release of openHAB (2.4). I will review this i more depth but for the moment you can add the compatibility with legacy bindings and install MQTT1 instead of the new binding.



Once you have enable it, you should be able to install the legacy version of the binding.



Install MQTT Binding





3. Edit the MQTT config file on /etc/openhab2/services/mqtt.cfg to tell OpenHab where and how to connect to the MQTT Broker.

















4. At this point, we have integrated Mosquitto with OpenHab. Let’s do some testing.



Testing MQTT Connectivity

This is only a simulation to make sure that OpenHab is connected to the MQTT broker. For this test, you will create an item to receive the values from the gas sensor. After that, you will have to use mosquitto_pub to simulate the sensor sending a value.

1. Create a file called sensors.items under /etc/openhab2/items and paste the following content.

Number mqtt_kitchen_gas "Gas Level [%.1f]" {mqtt="<[mosquitto:Home/Floor1/Kitchen/Gas_Sensor:state:default]"}

OpenHab is now acting a client and it is subscribed to the topic Home/Floor1/Kitchen/Gas_Sensor. Every time the gas sensor publishes a message, the item will be updated.



2. Add the new item to your sitemap.

Text item=mqtt_kitchen_gas icon="gas"
3. When you open your sitemap for the first time you will see something like this:

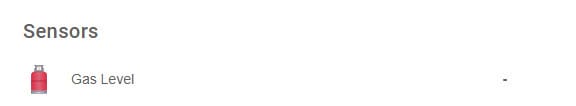

 Sitemap - Gas Sensor Before Updating MQTT value
You can see that there is a gas sensor that should give you the gas level but it has no value.
4. Publish a value to the topic Home/Floor1/Kitchen/Gas_Sensor using mosquitto_pub.
SSH into you OpenHab server and type:
mosquitto_pub -u openhabian --pw smarthomeblog -t "Home/Floor1/Kitchen/Gas_Sensor" -m 10
5. After refreshing your browser you will see that the gas sensor has a value of 10.

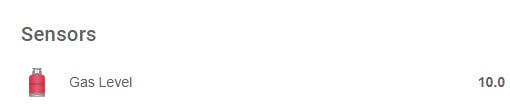

Sitemap - Gas Sensor AfterUpdating MQTT value

The MQTT broker is up and running! It wasn’t that difficult, was it?
